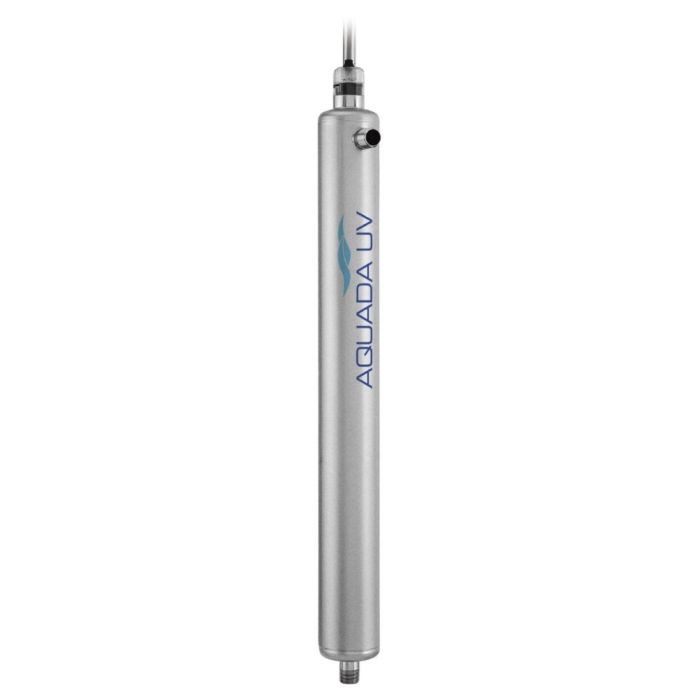

Aquada Altima 7 Ultraviolet Disinfection (UV) System - 150 Litres per Minute
In stock
The Altima 7 is ideal for large homes, multi‑unit dwellings, or light commercial sites requiring reliable, high-volume water disinfection. It excels in settings fed by boreholes, wells, or rainwater harvesting systems, where pathogen control is vital. This model is also well suited to shared or communal water systems, secondary distribution networks, or installations where future expansion is anticipated.
Optimised for reliability and simplicity, the Altima 7 features an integrated glow‑cap lamp indicator to visually confirm operation, and a Safe‑T‑Cap connector to prevent lamp removal while powered. With minimal moving parts and a focus on ease of maintenance, this system balances capacity with dependability — making it ideal for properties using boreholes, wells, rainwater harvesting systems, or as part of a modular water treatment setup..
Key Features
The Aquada Altima 7 UV System supports a high flow capacity of up to 150 L/min (9 m³/h) at a UV dose of 300 J/m² under 98% UV transmission conditions. The polished 316L stainless steel reactor offers strong corrosion resistance and structural integrity even under continuous operation. Included is a long‑life UV lamp (typically rated for ~8,000–9,000 hours), along with the intuitive glow‑cap indicator for immediate status feedback, and the Safe‑T‑Cap lamp connector which safeguards against accidental lamp removal while the unit is live.
Technical Specifications
-
Maximum Flow Rate (300 J/m²): Approx. 150 L/min (9 m³/h)
- Max Flow (400 J/m²): ~111 L/min (6.66 m³/h
-
Connection Size: 1″ BSP (G25)
-
Power Consumption: Approx. 85 W
-
Lamp Power Rating: 55 W
-
Reactor Material: 316L polished stainless steel
-
UV Lamp Life: Approx. 8,000 to 9,000 hours (continuous use)
-
System Dimensions (H × W × D): 1,035 × 132 × 192 mm
-
System Weight: Approx. 5.0 kg
-
Installation Orientation: Horizontal or vertical mounting
-
Operating Water Temperature: 5 °C to 30 °C (short-term max 35 °C)
-
Maximum Operating Pressure: 10 bar
-
Electrical Supply: 230 V / 50–60 Hz
-
Monitoring Feature: Glow-cap visual lamp indicator
-
Safety Feature: Safe-T-Cap connector (prevents lamp removal while powered)
Installation & Maintenance
The Aquada Altima 7 UV system is designed for easy integration into existing plumbing. For optimal performance, it is recommended to install the unit after a sediment pre-filter to ensure water clarity and maximise UV effectiveness.
Maintenance is minimal — replace the UV lamp annually and clean the quartz sleeve as needed. No chemicals, no cartridges, no hassle.
