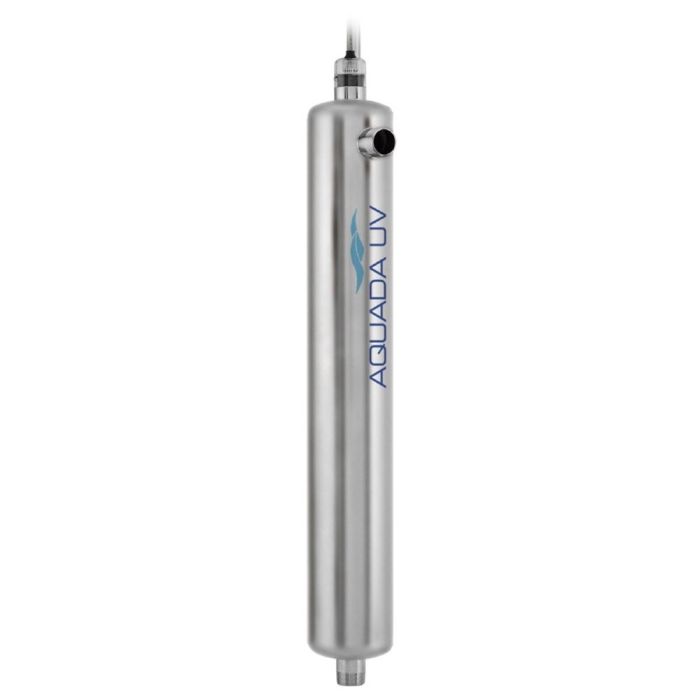

Aquada Altima 10 Ultraviolet Disinfection (UV) System - 175 Litres per Minute

Part Code: 76-403524

In stock

The Aquada models from Wedeco is an economical UV sterilisation system that can be used for both domestic and commercial applications. This model provides a safe, reliable and chemical free means of treating water, destroying 99.99% of microorganisms.
Description

The Aquada Altima 10 UV System is a high‑capacity ultraviolet disinfection unit engineered for large domestic estates, commercial installations, or complex shared water networks. With robust performance and chemical-free sterilisation, it ensures that water is purified to the highest microbiological standards without altering taste, odour, or pH. Constructed with a polished 316L stainless steel reactor, this system is built for longevity, corrosion resistance, and consistent operation under demanding conditions.

Key Features

The Altima 10 delivers an impressive flow capacity of up to 10.52 m³/h (≈175 L/min) at a UV dose of 300 J/m², making it an ideal solution for large homes, commercial buildings, and shared water supplies. Its 316L polished stainless steel reactor ensures exceptional durability and corrosion resistance, making it suitable for continuous use in demanding water treatment environments. The system uses chemical-free UV-C disinfection to neutralise 99.99% of harmful microorganisms such as bacteria, viruses, and protozoa — all while preserving the natural taste and quality of your water.

This system features a long-life UV lamp with a service life of approximately 8,000–9,000 hours, supported by a glow-cap indicator that provides instant visual confirmation of system operation. The built-in Safe-T-Cap connector enhances user safety by preventing the UV lamp from being removed while the system is powered. With standard 1½″ BSP connections, low energy consumption, and straightforward installation, the Aquada Altima 10 is a reliable, high-performance UV steriliser that requires minimal maintenance — making it an excellent choice for high-demand, long-term water disinfection applications.

Technical Specifications

  • Maximum Flow Rate (300 J/m²): 10.52 m³/h (≈175 L/min)

  • Max Flow Rate (400 J/m²): 7.89 m³/h

  • Connection Size: 1½″ BSP (G40)

  • Power Consumption: 85 W

  • Lamp Power Rating: 55 W

  • Reactor Material: 316L polished stainless steel

  • UV Lamp Life: Approx. 8,000–9,000 hours (continuous use)

  • System Dimensions (H × W × D): 1,040 × 180 × 140 mm

  • System Weight: Approx. 9.0 kg

  • Installation Orientation: Horizontal or vertical mounting

  • Operating Water Temperature: 5 °C to 30 °C (max 35 °C short-term)

  • Maximum Operating Pressure: 10 bar

  • Electrical Supply: 230 V / 50–60 Hz

  • Monitoring Feature: Glow-cap visual lamp status indicator

  • Safety Feature: Safe-T-Cap connector prevents lamp removal while powered

Installation & Maintenance

The Aquada Altima 10 UV system is designed for easy integration into existing plumbing. For optimal performance, it is recommended to install the unit after a sediment pre-filter to ensure water clarity and maximise UV effectiveness.

Maintenance is minimal — replace the UV lamp annually and clean the quartz sleeve as needed. No chemicals, no cartridges, no hassle.

Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Specification
Manufacturer Wedeco
