Aquada Maxima 7 Ultraviolet Disinfection (UV) System - 150 Litres per Minute
In stock
The Aquada Maxima 7 UV System is a high‑performance water disinfection solution designed for large residential, commercial, and industrial applications. With a maximum flow rate of 150 L/min, this system ensures effective microbiological protection by delivering a consistent UV dose, making it ideal for properties with high water demand or those requiring stringent water quality standards.

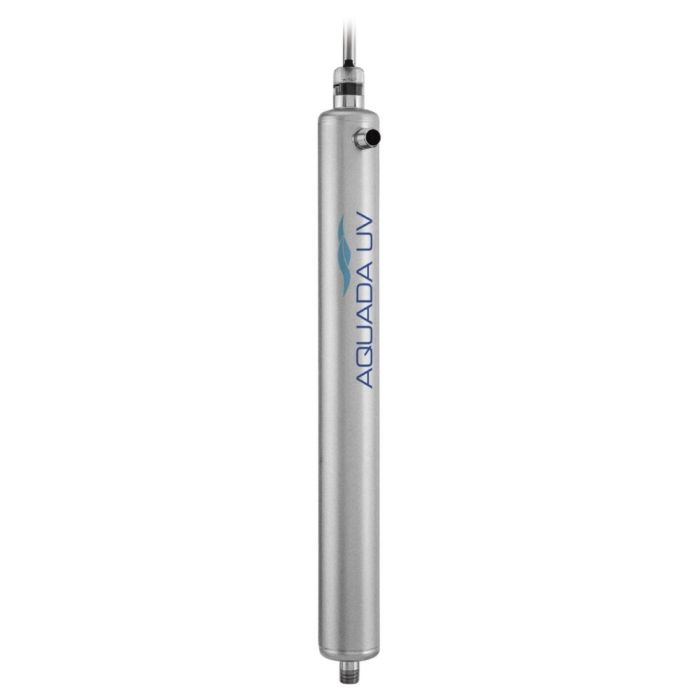

Built with a polished 316 stainless steel reactor and a robust control unit, the Maxima 7 offers advanced monitoring features, including real‑time UV intensity sensing and digital lamp life tracking. Its durable construction and comprehensive safety features make it a reliable choice for installations where water safety is paramount.
Key Features
This system integrates advanced UV intensity monitoring with a high‑capacity design to provide superior disinfection performance. The system continuously measures UV output and triggers alarms if the intensity falls below the required threshold, ensuring that water is effectively treated. The digital lamp life counter tracks operating hours and alerts users when lamp replacement is due, maintaining optimal system performance.
Designed for ease of maintenance and durability, the Maxima 7 features a Safe‑T‑Cap lamp connector for tool‑free lamp and quartz sleeve replacement. The electropolished 316 stainless steel reactor resists corrosion and scaling, while the compact control housing supports clean installation. Additionally, the system includes an interface for connecting a solenoid safety valve, enabling automatic flow shut‑off in the event of a fault, further enhancing user safety.
Technical Specifications
-
Maximum Flow Rate: 150 L/min (9.0 m³/h)
-
Pipe Connection: 1″ BSP (male)
-
Lamp Power: 85 W
-
Reactor Dimensions (H × W × D): 1,035 × 132 × 102 mm
-
Unit Weight: ~ 5.0 kg
-
Maximum Operating Pressure: 6 bar
-
Operating Temperature Range: 5 °C to 40 °C
-
UV Monitoring: Real‑time intensity sensor with digital display
-
Alarm Modes: Audible + visual (lamp failure, low intensity, end‑of‑life)
-
Housing Material: Electropolished 316 stainless steel
-
Power Supply: 230 V, 50 Hz
-
Lamp Life: ~ 8,650 hours (approx. 1 year continuous)
-
Certification: Biodosimetric tested per Aquada standards
Installation & Maintenance
The Aquada Maxima 7 UV system is designed for easy integration into existing plumbing. For optimal performance, it is recommended to install the unit after a sediment pre-filter to ensure water clarity and maximise UV effectiveness.
Maintenance is minimal — replace the UV lamp annually and clean the quartz sleeve as needed. No chemicals, no cartridges, no hassle.
Manufacturer | Wedeco |
---|
