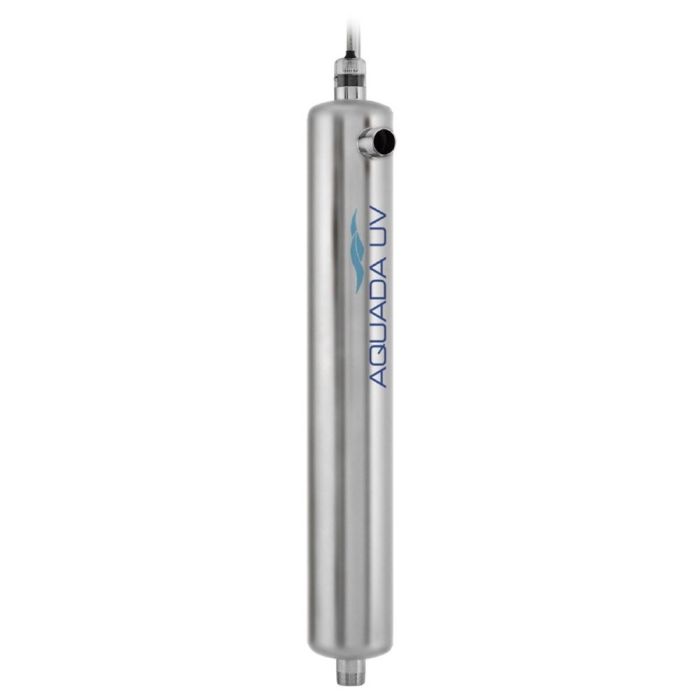

Aquada Maxima 10 Ultraviolet Disinfection (UV) System - 219.5 Litres per Minute
In stock
The Aquada Maxima 10 UV System is the top-tier, high-capacity model in the Aquada Maxima series, designed for installations that demand both high flow and rigorous UV monitoring. This model is ideal for large houses, estates, small industrial plants, or multi‑unit residential systems where microbiological safety must be assured under heavy demand. As with all Maxima models, it not only detects lamp failure but also continuously monitors UV intensity to ensure the delivered dose remains above required thresholds.
Constructed with an electropolished 316 stainless steel reactor and a smart control module, the Maxima 10 includes audible and visual alarms, a digital lamp life counter, and an interface for an optional safety shut‑off valve. Its combination of high flow capacity, advanced monitoring, and robust design makes it the ideal choice where performance cannot be compromised.
Key Features
This system combines real‑time UV intensity monitoring with traditional lamp failure detection, delivering a higher level of protection than basic UV units. The built‑in UV sensor continuously measures irradiance, triggering both visual and audible alerts should the UV output drop below safe levels. The digital lamp life counter tracks total operating hours and provides timely prompts when a replacement is due, ensuring that system performance remains consistent over time.
Beyond its monitoring capabilities, the Maxima 10 is built for durability and ease of operation. The Safe‑T‑Cap connector allows tool‑free removal and replacement of the lamp and quartz sleeve, making routine maintenance quick and straightforward. The electropolished 316 stainless steel reactor resists corrosion and scaling, while the compact control housing supports tidy installation. An integrated interface enables connection to a solenoid safety valve, allowing automatic shut‑off of flow under fault conditions.
Technical Specifications
-
Maximum Flow Rate: ~ 13,170 L/h (≈ 219.5 L/min ≈ 13.17 m³/h)
-
Pipe Connection: 1½″ BSP (male)
-
Lamp Power: 85 W
-
Reactor Dimensions (H × W × D): 1,040 × 180 × 140 mm
-
Unit Weight: ~ 9.0 kg
-
Maximum Operating Pressure: 10 bar
-
Operating Temperature Range: 5 °C to 40 °C
-
UV Monitoring: Real‑time intensity sensor with digital display
-
Alarm Modes: Audible + visual (lamp failure, low intensity, end‑of‑life)
-
Housing Material: Electropolished 316 stainless steel
-
Power Supply: 230 V, 50 Hz
-
Lamp Life: ~ 8,650–8,760 hours (approx. 1 year continuous)
-
Certification: Biodosimetric tested per Aquada / Wedeco standards
Installation & Maintenance
The Aquada Maxima 10 UV system is designed for easy integration into existing plumbing. For optimal performance, it is recommended to install the unit after a sediment pre-filter to ensure water clarity and maximise UV effectiveness.
Maintenance is minimal — replace the UV lamp annually and clean the quartz sleeve as needed. No chemicals, no cartridges, no hassle.
| Manufacturer | Wedeco |
|---|
