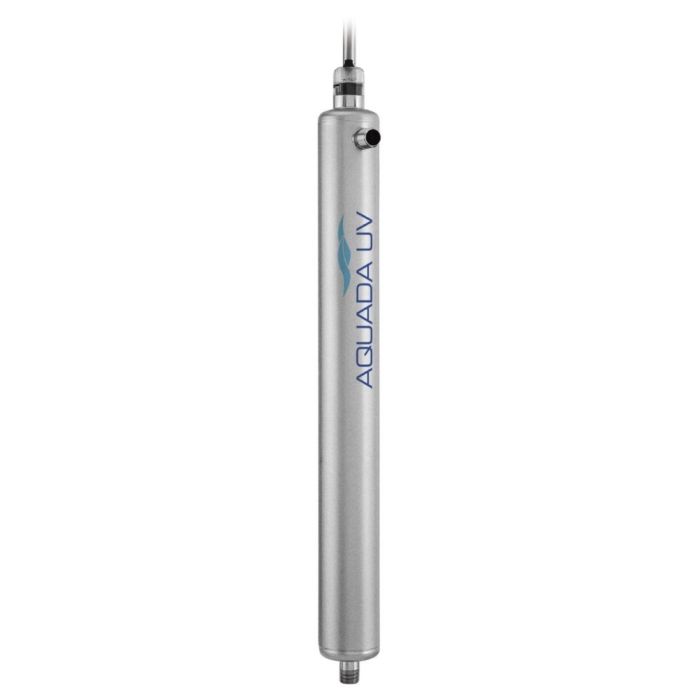

Aquada Proxima 7 Ultraviolet Disinfection (UV) System - 150 Litres per Minute
In stock
The Aquada Proxima 7 UV System is a high‑performance ultraviolet water disinfection unit designed for larger homes, commercial premises, and shared water systems that demand reliable, continuous treatment. As a premium model in the Proxima line, it combines proven UV‑C sterilisation with sophisticated monitoring features such as digital lamp life display, microcomputer control, and audible/visual alarm notifications for enhanced safety and usability. Its reactor is constructed from polished 316L stainless steel to resistant corrosion and promote effective UV exposure, while the integrated electronics provide real‑time diagnostics.
This system is ideal for installations drawing from private sources—including wells, boreholes, large residences, multi‑dwelling complexes, light commercial sites or rainwater harvesting—or for boosting existing water systems where microbial protection is critical. With its balance of strong capacity, smart controls, and minimal maintenance, the Proxima 7 offers a reliable and modern solution for safe, chemical‑free water treatment.
Key Features
This system supports a high flow capacity of approximately 150 litres per minute (≈ 9.0 m³/h) at a UV dose of 300 J/m² under 98% UV transmission conditions. Its sturdy 316L stainless steel reactor, glow‑cap lamp indicator, and Safe‑T‑Cap connector ensure both durability and safe servicing.
Equipped with microcomputer-based monitoring, the system features a digital lamp life counter and both audible and visual alarms to alert users of system faults or lamp end-of-life. The UV‑C lamp effectively inactivates 99.99% of bacteria, viruses, and protozoa without introducing chemicals or altering water taste. Maintenance is straightforward — typically limited to periodic lamp replacement and quartz sleeve cleaning — and standard installation with compatible plumbing ensures ease of integration.
Technical Specifications
-
Maximum Flow Rate: (300 J/m²): ≈ 9.0 m³/h (150 L/min)
-
Maximum Flow Rate: (400 J/m²): ≈ 6.66 m³/h (111 L/min)
-
Connection Size: 1″ BSP
-
Power Consumption: ~85 W
-
Reactor Material: 316L polished stainless steel
-
Dimensions (H × W × D): 1,035 × 132 × 192 mm
-
Weight: ~5.0 kg
-
Operating Water Temperature: Typically up to 25 °C
-
Maximum Pressure: 6 bar
-
Electrical Supply: 230 V / 50 Hz
-
Monitoring & Safety: Digital lamp life display, microcomputer control, audible + visual alarms, glow‑cap indicator, Safe‑T‑Cap connector
Installation & Maintenance
The Aquada Proxima 7 UV system is designed for easy integration into existing plumbing. For optimal performance, it is recommended to install the unit after a sediment pre-filter to ensure water clarity and maximise UV effectiveness.
Maintenance is minimal — replace the UV lamp annually and clean the quartz sleeve as needed. No chemicals, no cartridges, no hassle.
| Manufacturer | Wedeco |
|---|
