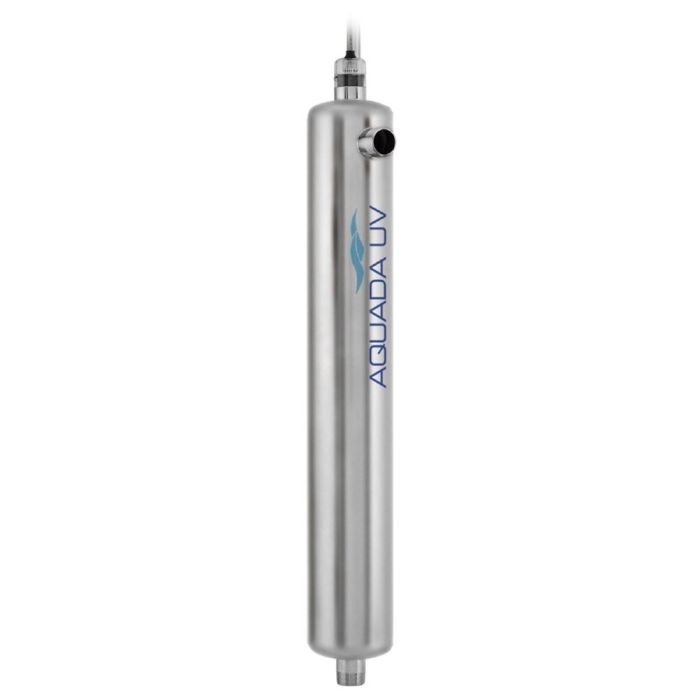

Aquada Proxima 10 Ultraviolet Disinfection (UV) System - 175 Litres per Minute

Part Code: 76-403604

In stock

The Aquada models from Wedeco is an economical UV sterilisation system that can be used for both domestic and commercial applications. This model provides a safe, reliable and chemical free means of treating water, destroying 99.99% of microorganisms.
Description

The Aquada Proxima 10 UV System is a high-capacity ultraviolet water disinfection unit engineered for large estates, industrial buildings, or shared water systems where microbial safety and reliability are paramount. As part of the Proxima line, it combines robust UV‑C sterilisation with advanced intelligence: microcomputer monitoring, digital lamp life display, and audible/visual alarm notifications give you real-time insight and confidence in water performance. Encased in a polished 316L stainless steel reactor, the system ensures longevity, corrosion resistance, and optimal internal reflectivity for effective UV exposure.

With its strong capacity and smart diagnostics, the Proxima 10 is ideal for installations using private water sources—such as wells, boreholes, large residential complexes, office buildings, commercial properties, shared water networks or rainwater harvesting—or in systems where adding disinfection to municipal supply is prudent. It’s designed to deliver high throughput with minimal maintenance and dependable performance under demanding conditions.

Key Features

This system supports a maximum flow capacity of approximately 10.52 m³/h (≈ 175 L/min) at a standard UV dose of 300 J/m², and around 7.89 m³/h at 400 J/m², providing substantial treatment margin for multi-outlet systems. Its 316L polished stainless steel reactor, glow-cap lamp status indicator, and Safe‑T‑Cap lamp connector deliver durability, visibility, and safe servicing under operational conditions.

Under the hood, the system includes microcomputer-based management, digital lamp life countdown display, and audible & visual fault alarms to alert users of degradation or system issues. The UV‑C lamp inactivates 99.99% of bacteria, viruses, and protozoa without the use of chemicals, preserving natural water quality. Routine maintenance is simple—periodic UV lamp replacement and quartz sleeve cleaning—while standard fitting sizes make installation straightforward.

Technical Specifications

  • Maximum Flow: (300 J/m²): ~10.52 m³/h (~175 L/min)

  • Maximum Flow: (400 J/m²): ~7.89 m³/h

  • Connection Size: 1½″ BSP

  • Power Consumption: ~85 W

  • Reactor Material: Polished 316L stainless steel

  • Dimensions (H × W × D): 1,040 × 180 × 140 mm

  • Weight: ~9.0 kg

  • Operating Water Temperature: up to 25 °C (typical)

  • Maximum Pressure: 6 bar

  • Electrical Supply: 230 V / 50 Hz

  • Monitoring & Safety: Digital lamp life display, microcomputer control, audible + visual alarms, glow‑cap indicator, Safe‑T‑Cap connector

Installation & Maintenance

The Aquada Proxima 10 UV system is designed for easy integration into existing plumbing. For optimal performance, it is recommended to install the unit after a sediment pre-filter to ensure water clarity and maximise UV effectiveness.

Maintenance is minimal — replace the UV lamp annually and clean the quartz sleeve as needed. No chemicals, no cartridges, no hassle.
