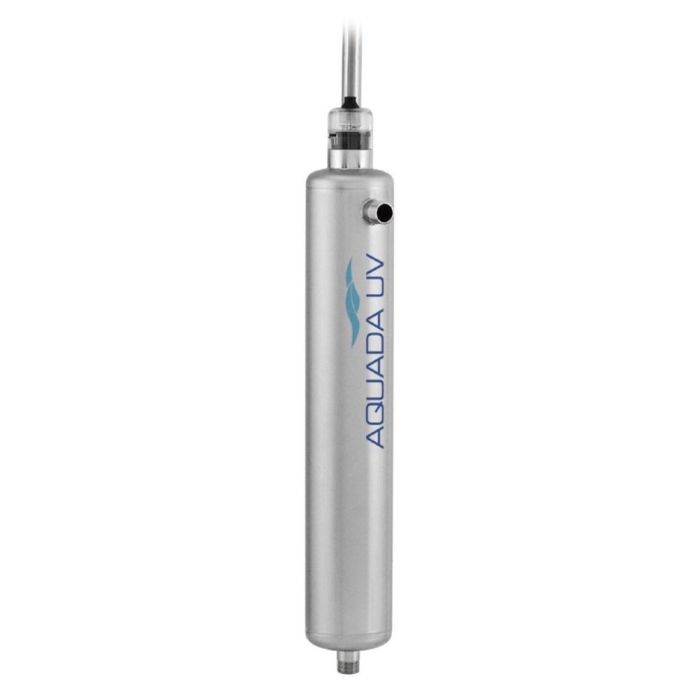

Aquada Proxima 4 Ultraviolet Disinfection (UV) System - 54 Litres per Minute
In stock
The Aquada Proxima 4 UV System is a powerful mid-capacity ultraviolet water disinfection unit tailored for larger homes, small commercial setups, or shared water systems where reliable, chemical-free treatment is essential. As a member of the Proxima series, it combines robust UV‑C sterilisation with smart monitoring features — including microcomputer control, audible/visual alarm signals, and a digital lamp life countdown display. Its reactor features polished 316L stainless steel construction to maximise UV reflectivity and durability, while the integrated electronics continuously monitor system performance.
Designed for seamless integration, the Proxima 4 is ideal for use in installations with private water sources such as boreholes, wells, or rainwater harvesting systems — or for upgrading existing systems where water safety is critical. Its combination of high throughput, smart diagnostics, and minimal maintenance makes it a dependable choice for demanding water treatment environments.
Key Features
The Aquada Proxima 4 supports a maximum flow rate of approximately 3.24 m³/h (≈ 54 L/min) at a UV dose of 300 J/m² and high UV transmission. It features polished 316L stainless steel construction, a glow‑cap lamp status indicator, and a Safe‑T‑Cap lamp connector that prevents lamp removal while the system is powered, ensuring safe servicing.
Inside, the system is equipped with microcomputer-based monitoring, digital lamp life display, and audible + visual fault alerts, providing proactive alerts for lamp ageing or system faults. The UV lamp inactivates 99.99% of bacteria, viruses, and protozoa, without introducing chemicals or altering water taste. With simple maintenance requirements — periodic lamp replacement and quartz sleeve cleaning — and compatibility with standard plumbing fittings, the Proxima 4 is engineered for reliable, long-term performance.
Technical Specifications
-
Maximum Flow: (300 J/m²): 3.24 m³/h (≈ 54 L/min)
-
Maximum Flow: (400 J/m²): ~2.98 m³/h
-
Connection Size: ¾″ BSP
-
Power Consumption: 55 W
-
Reactor Material: Polished 316L stainless steel
-
Dimensions (H × W × D): 675 × 129 × 102 mm
-
Weight: Approx. 3.2 kg
-
Operating Water Temperature: 5 °C to 25 °C (typical)
-
Maximum Pressure: 6 bar
-
Electrical Supply: 230 V, 50 Hz
-
Monitoring & Safety: Digital lamp display, microcomputer control, audible + visual alarms, glow‑cap indicator, Safe‑T‑Cap connector
Installation & Maintenance
The Aquada Proxima 4 UV system is designed for easy integration into existing plumbing. For optimal performance, it is recommended to install the unit after a sediment pre-filter to ensure water clarity and maximise UV effectiveness.
Maintenance is minimal — replace the UV lamp annually and clean the quartz sleeve as needed. No chemicals, no cartridges, no hassle.
| Manufacturer | Wedeco |
|---|
