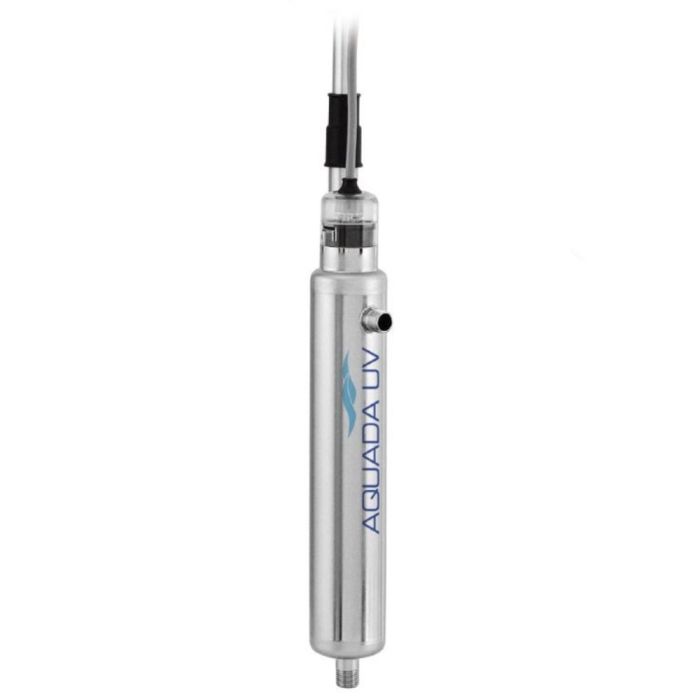

Aquada Maxima 1 Ultraviolet Disinfection (UV) System - 12 Litres per Minute
In stock
The Aquada Maxima 1 UV System is the top‑end model of the Aquada series, designed for installations where water safety and monitoring are critical. This model not only detects lamp failure but also continuously monitors UV intensity, ensuring the disinfection dose remains within specification. Ideal for private wells, borehole systems, small commercial sites, guesthouses or any application where microbiological risk must be tightly managed, the Maxima 1 gives you peace of mind through real‑time diagnostics and fail‑safe alarms.
Constructed with a polished 316 stainless steel reactor and a compact control module, the Maxima 1 is built for durability, ease of maintenance, and long service life. It includes audible and visual alarms, a digital lamp life counter, and interfaces for an optional safety shut‑off valve. With its high standard of monitoring and build quality, it stands ready for demanding environments or regulatory scrutiny.
Key Features
The Aquada Maxima 1 delivers dual protection by combining lamp failure detection with real‑time UV intensity monitoring. This ensures not only that the lamp is operating but also that the delivered UV dose remains above the required threshold. When intensity falls below set levels, the system triggers audiovisual alarms, safeguarding downstream users. The built‑in digital life counter tracks lamp runtime and provides prompts for replacement, helping maintain consistent performance and reliability.
In addition to advanced monitoring, the Maxima 1 is designed for user convenience and rugged operation. The Safe‑T‑Cap lamp connector allows tool‑free removal and reinstallation of the lamp and quartz assembly, while the electropolished 316 stainless steel reactor resists corrosion and scaling. A compact control housing makes for tidy installation, and the unit includes an interface to drive a solenoid safety valve under fault conditions. These design touches combine to deliver a high‑confidence, low‑maintenance solution suited to installations with challenging water quality or reliability demands.
Technical Specifications
-
Maximum Flow Rate: ~ 12 L/min (0.72 m³/h)
-
Pipe Connection: ½″ BSP (male)
-
Lamp Power: 35 W
-
Reactor Dimensions (H × W × D): 470 × 90 × 70 mm
-
Unit Weight: ~ 1.7 kg
-
Maximum Operating Pressure: 10 bar
-
Operating Temperature Range: 5 °C to 40 °C
-
UV Monitoring: Real‑time intensity sensor with digital display
-
Alarm Modes: Audible + visual for lamp failure, low intensity, end‑of‑life
-
Housing Material: Electropolished 316 stainless steel
-
Power Supply: 230 V, 50 Hz
-
Lamp Life: ~ 8,760 hours (approx. 1 year continuous)
-
Certification: Biodosimetric tested according to Aquada standards
Installation & Maintenance
The Aquada Maxima 1 UV system is designed for easy integration into existing plumbing. For optimal performance, it is recommended to install the unit after a sediment pre-filter to ensure water clarity and maximise UV effectiveness.
Maintenance is minimal — replace the UV lamp annually and clean the quartz sleeve as needed. No chemicals, no cartridges, no hassle.
| Manufacturer | Wedeco |
|---|
