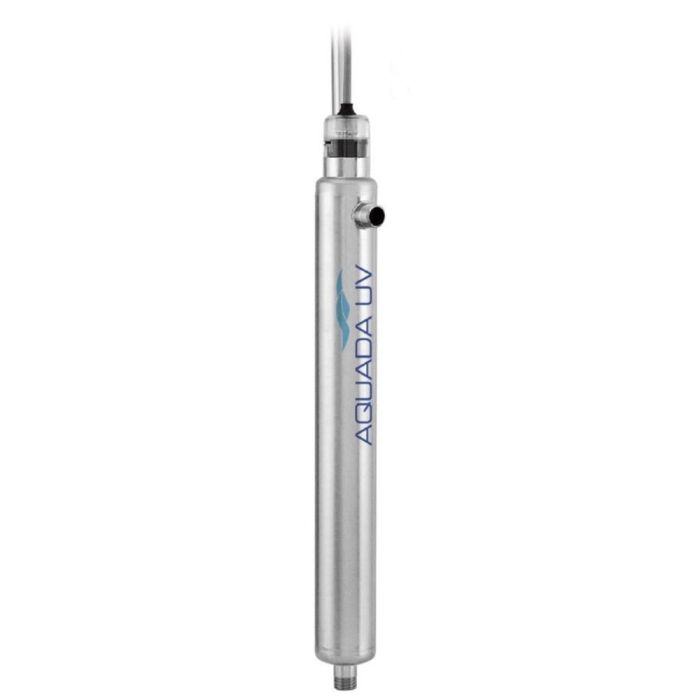

Aquada Maxima 2 Ultraviolet Disinfection (UV) System - 25 Litres per Minute
In stock
The Aquada Maxima 2 UV System, the enhanced model of the Aquada Maxima series designed for higher flow demands and rigorous monitoring. This system is engineered to not only detect lamp failure but measure real‑time UV intensity, ensuring the disinfection dose remains above the target threshold under all conditions. Suitable for larger domestic, multi‑tap or small commercial installations, borehole water treatment, and environments where microbiological safety is non‑negotiable.
Constructed from high quality electropolished 316 stainless steel, the reactor unit couples with a compact control module featuring audiovisual alerts, a digital lamp life counter, and an interface for optional solenoid shut‑off valves. With the Maxima 2, users gain confidence through continuous feedback, robust build quality, and ease of maintenance even in challenging water conditions.
Key Features
This system combines lamp failure detection with active UV intensity monitoring to deliver advanced protection. The system continuously measures UV output and triggers visual and audible alarms if the delivered dose falls below acceptable levels, ensuring water safety. The integrated digital lamp life counter records runtime in hours and alerts the user when the lamp is nearing its end of life, maintaining system reliability across varying water conditions.
Beyond its monitoring capabilities, the Maxima 2 is built for practicality and longevity. The Safe‑T‑Cap lamp connector enables tool‑free removal and replacement of the lamp and quartz sleeve, streamlining maintenance operations. The electropolished 316 stainless steel reactor resists corrosion and scaling, while the compact control housing supports neat installation. Additionally, an interface port enables connection to a solenoid safety valve that can shut off flow under fault conditions. Altogether, these qualities make the Maxima 2 an ideal UV system for installations demanding higher throughput, constant oversight, and minimal downtime.
Technical Specifications
-
Maximum Flow Rate: ~ 25 L/min (1.5 m³/h)
-
Pipe Connection: 1″ BSP (male)
-
Lamp Power: 55 W
-
Reactor Dimensions (H × W × D): 630 × 110 × 80 mm
-
Unit Weight: ~ 2.8 kg
-
Maximum Operating Pressure: 10 bar
-
Operating Temperature Range: 5 °C to 40 °C
-
UV Monitoring: Real‑time intensity sensor with digital display
-
Alarm Modes: Audible + visual for lamp failure, low intensity, end‑of‑life
-
Housing Material: Electropolished 316 stainless steel
-
Power Supply: 230 V, 50 Hz
-
Lamp Life: ~ 8,760 hours (approx. 1 year continuous)
-
Certification: Biodosimetric tested per Aquada standards
Installation & Maintenance
The Aquada Maxima 2 UV system is designed for easy integration into existing plumbing. For optimal performance, it is recommended to install the unit after a sediment pre-filter to ensure water clarity and maximise UV effectiveness.
Maintenance is minimal — replace the UV lamp annually and clean the quartz sleeve as needed. No chemicals, no cartridges, no hassle.
